Demand Flow Regulators
The Oxford Valves OV-DFR-400 Series is a range of demand flow regulators designed for calibration gases, pump-based instruments, handheld gas detectors, and portable gas calibration systems.
Demand flow regulators supply gas only when demanded by the instrument and automatically shut off when demand stops. This makes them suitable for pumped gas detectors and sampling instruments where gas is drawn only when required.
The OV-DFR-400 Series includes C10, CGA600, high pressure, brass nickel plated, stainless steel, aluminium hard anodised, and 45-degree outlet configurations.
OV-DFR-401 C10 Demand Flow Regulator, Brass Nickel Plated Configuration
The OV-DFR-401 is a C10 demand flow regulator used for calibration gases, pump-based instruments, and handheld gas detectors. It supplies gas as demanded by the instrument and automatically shuts off when demand stops.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
PISTON
|
BRASS
|
|
BONNET
|
ALUMINIUM
|
|
DIAPHRAGM
|
NBR
|
|
BODY SEAL
|
NBR
|
|
PISTON SEAL
|
VITON
|
|
VALVE SEAT
|
PTFE / PCTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|

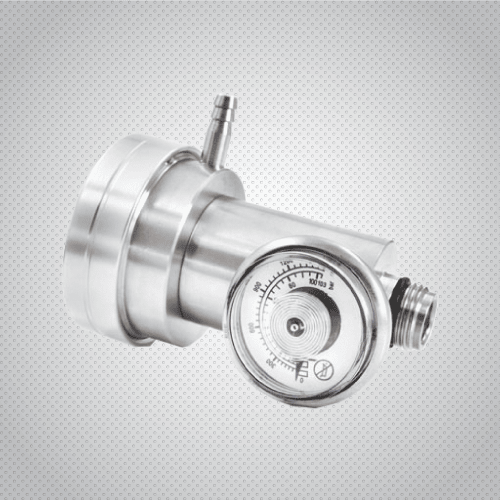

OV-DFR-402 C10 Demand Flow Regulator, Stainless Steel
The OV-DFR-402 is a stainless steel C10 demand flow regulator for calibration gases, pump-based instruments, and handheld gas detectors. It supplies gas according to instrument demand and shuts off automatically when demand stops.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
PISTON
|
STAINLESS STEEL
|
|
BONNET
|
ALUMINIUM
|
|
DIAPHRAGM
|
VITON
|
|
BODY SEAL
|
VITON
|
|
PISTON SEAL
|
VITON
|
|
VALVE SEAT
|
PTFE / PCTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|

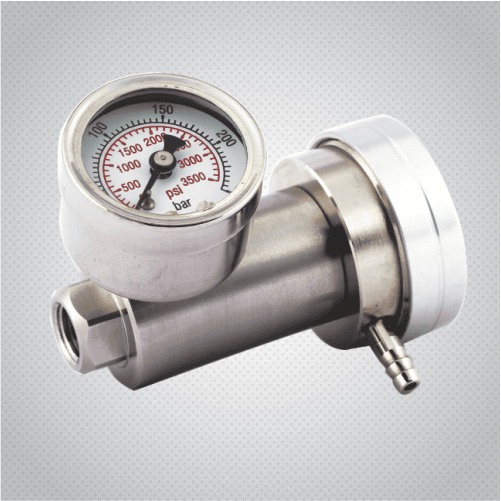

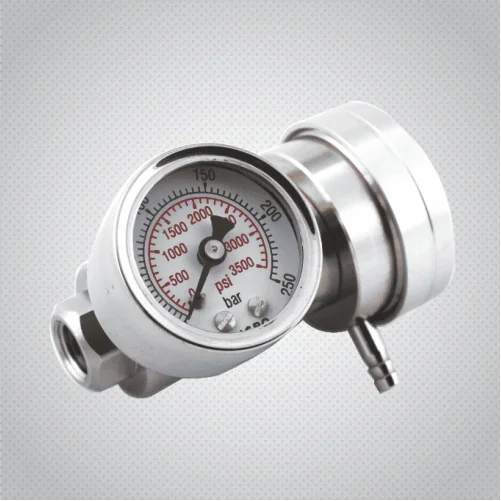

OV-DFR-403 High Pressure Demand Flow Regulator, Brass Nickel Plated Configuration
The OV-DFR-403 is a high pressure demand flow regulator used for calibration gases, pump-based instruments, and handheld gas detectors. It supplies gas only as demanded by the instrument and automatically shuts off when demand stops
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
PISTON
|
BRASS
|
|
BONNET
|
ALUMINIUM
|
|
DIAPHRAGM
|
NBR
|
|
BODY SEAL
|
NBR
|
|
PISTON SEAL
|
VITON
|
|
VALVE SEAT
|
PTFE / PCTFE
|
|
GAUGE
|
0-3000 PSI
|
|
INLET
|
1/4 NPTF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|

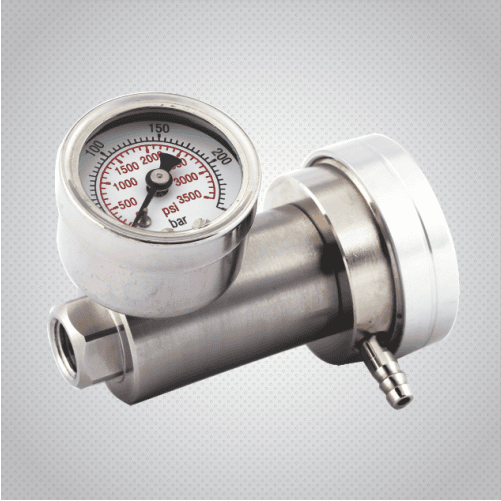

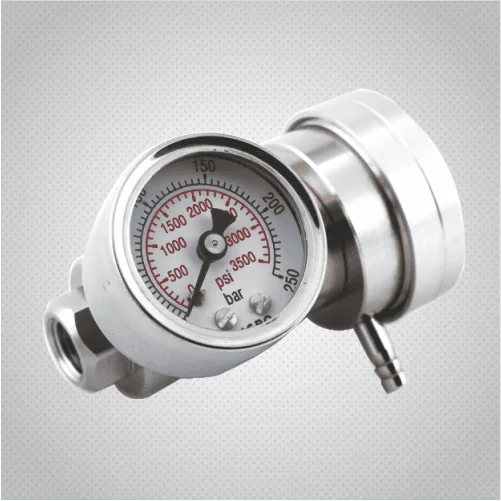

OV-DFR-404 High Pressure Demand Flow Regulator, Stainless Steel
The OV-DFR-404 is a stainless steel high pressure demand flow regulator for calibration gases, pump-based instruments, and handheld gas detectors. It is suitable for applications requiring stainless steel construction and higher inlet pressure capacity.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
PISTON
|
STAINLESS STEEL
|
|
BONNET
|
ALUMINIUM
|
|
DIAPHRAGM
|
VITON
|
|
BODY SEAL
|
VITON
|
|
PISTON SEAL
|
VITON
|
|
VALVE SEAT
|
PTFE / PCTFE
|
|
GAUGE
|
0-3000 PSI
|
|
INLET
|
1/4 NPTF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
OV-DFR-405 CGA600 Demand Flow Regulator, Brass Nickel Plated Configuration
The OV-DFR-405 is a CGA600 demand flow regulator used for calibration gases, pump-based instruments, and handheld gas detectors. It supplies gas as demanded by the instrument and automatically shuts off when demand stops.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
BRASS
|
|
PISTON
|
BRASS
|
|
BONNET
|
ALUMINIUM
|
|
DIAPHRAGM
|
NBR
|
|
BODY SEAL
|
NBR
|
|
PISTON SEAL
|
VITON
|
|
VALVE SEAT
|
PTFE / PCTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
1"-20 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
OV-DFR-406 C10 Demand Flow Regulator, Aluminium Hard Anodised
The OV-DFR-406 is a lightweight C10 demand flow regulator with aluminium hard anodised body and neck construction. It is used for calibration gases, pump-based instruments, and handheld gas detectors where a lighter regulator configuration is preferred.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
ALUMINIUM
|
|
PISTON
|
BRASS
|
|
BONNET
|
ALUMINIUM
|
|
DIAPHRAGM
|
NBR
|
|
BODY SEAL
|
NBR
|
|
PISTON SEAL
|
VITON
|
|
VALVE SEAT
|
PTFE / PCTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
OV-DFR-407 C10 45-Degree Demand Flow Regulator, Brass Nickel Plated Configuration
The OV-DFR-407 is a C10 demand flow regulator with a 45-degree outlet configuration. It is used for calibration gases, pump-based instruments, and handheld gas detectors where an angled outlet layout is required.
