Vari-Flow Regulators
The Oxford Valves OV-VFR-500 Series is a range of Vari-Flow regulators designed for calibration gases, handheld gas detectors, portable gas calibration systems, and applications requiring selectable preset flow rates.
Vari-Flow regulators use a single-stage design and provide the user with a series of preset constant flow rates. The dial on the top of the regulator is used to manually select the required flow rate.
The OV-VFR-500 Series includes stainless steel and aluminium anodised C10 regulator configurations with selectable flow rate options, C10 inlet connection, barb outlet connection, and gauge options.

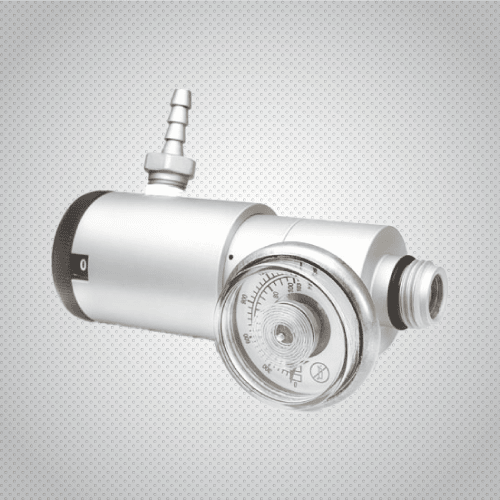

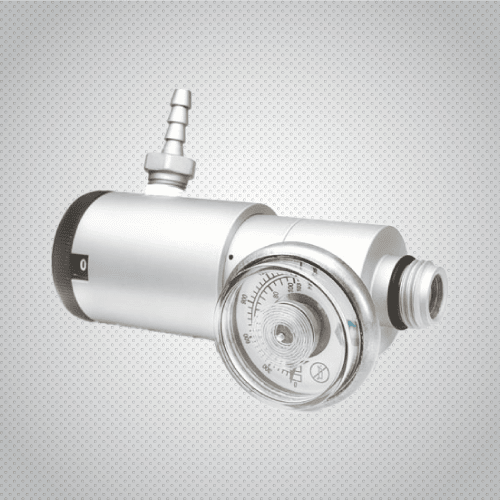

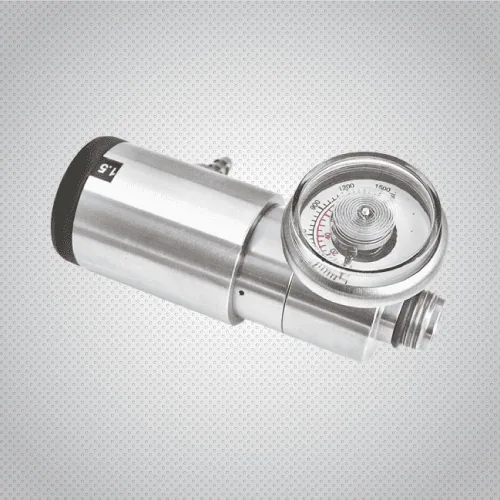

OV-VFR-501 C10 Vari-Flow Regulator, Stainless Steel
The OV-VFR-501 Vari-Flow Regulator is constructed from stainless steel and features a robust dial for selecting flow rates. It connects via a C10 inlet and offers reliable gas control for calibration applications requiring variable flow settings across different environments.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
CAP
|
STAINLESS STEEL
|
|
BONNET
|
ALUMINIUM
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEAL
|
VITON
|
|
BODY SEAL
|
VITON
|
|
VALVE SEAT
|
VITON / PTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|
OV-VFR-502 C10 Vari-Flow Regulator, Aluminium Anodised
The OV-VFR-502 is a lightweight aluminium anodised C10 Vari-Flow regulator designed for calibration gases and handheld gas detectors. It provides selectable preset flow rates through a top dial and is suitable for compatible non-reactive gas applications.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
ALUMINIUM
|
|
CAP
|
ALUMINIUM
|
|
BONNET
|
ALUMINIUM
|
|
PISTON
|
BRASS
|
|
PISTON SEAL
|
VITON / NBR
|
|
BODY SEAL
|
NBR
|
|
VALVE SEAT
|
VITON / PTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|
