Gas Filling Adaptors, Connectors & High Purity Hoses
Gas Filling Adaptors, Connectors & High Purity Hoses
Oxford Valves supplies gas filling adaptors, cylinder connectors, regulator connectors and high purity flexible hose assemblies for calibration gas, specialty gas, laboratory and technical gas applications.
Our accessories support the connection of gas cylinders, valves, regulators, filling equipment and downstream gas control systems. Products include C10 adaptors, CGA adaptors, aerosol adaptors, NPT adaptors, NEN connectors, DIN connectors, CGA connectors, British Standard connectors and flexible hose assemblies.
Product selection should be reviewed based on gas type, pressure, connection standard, material compatibility, seal compatibility and application conditions.
Filling Adaptors
Filling Adaptors for Gas Cylinders, Valves & Regulators
Oxford Valves supplies filling adaptors for selected calibration gas, specialty gas and small cylinder applications. These adaptors help connect different cylinder valve, regulator and filling connection types where compatible connection conversion is required.
C10-Female x CGA 165-Female Adaptor
Stainless steel C10 Female x CGA 165 Female Adapter for connection between C10 and CGA 165 interfaces.
Technical Details
Maximum Inlet Pressure: 83 bar / 1200 psi
Inlet Connection: C10 Female
Outlet Connection: CGA 165 Female
Material: Stainless Steel
Aerosol-Female x C10-Female Adapto
Stainless steel Aerosol Female x C10 Female Adapter for connection between aerosol and C10 interfaces.
Technical Details
Maximum Inlet Pressure: 20 bar / 290 psi
Inlet Connection: Aerosol
Outlet Connection: 5/8″ x 18 UNF C10 Connection
Material: Stainless Steel
Selection Note: Confirm suitability based on gas type, pressure, connection standard, material compatibility and operating conditions.
C10 Male x CGA 600 Female Adapter
Brass C10 Male x CGA 600 Female Adapter for connection between C10 male and CGA 600 female interfaces.
Technical Details
Maximum Inlet Pressure: 41 bar / 600 psi
Inlet Connection: C10 — 5/8″ x 18 TPI UNF Male
Outlet Connection: CGA 600 Female
Material: Brass
1/4" NPT Male x C10 Male Adapter
1/4″ NPT Male x C10 Male Adapter available in brass or stainless steel for connection between 1/4″ NPT female inlet equipment and C10 valve interfaces.
Technical Details
Maximum Inlet Pressure: 90 bar / 1305 psi
Inlet Connection: 1/4″ NPT Male
Outlet Connection: C10 — 5/8″ x 18 TPI UNF Male
Material: Brass or Stainless Steel

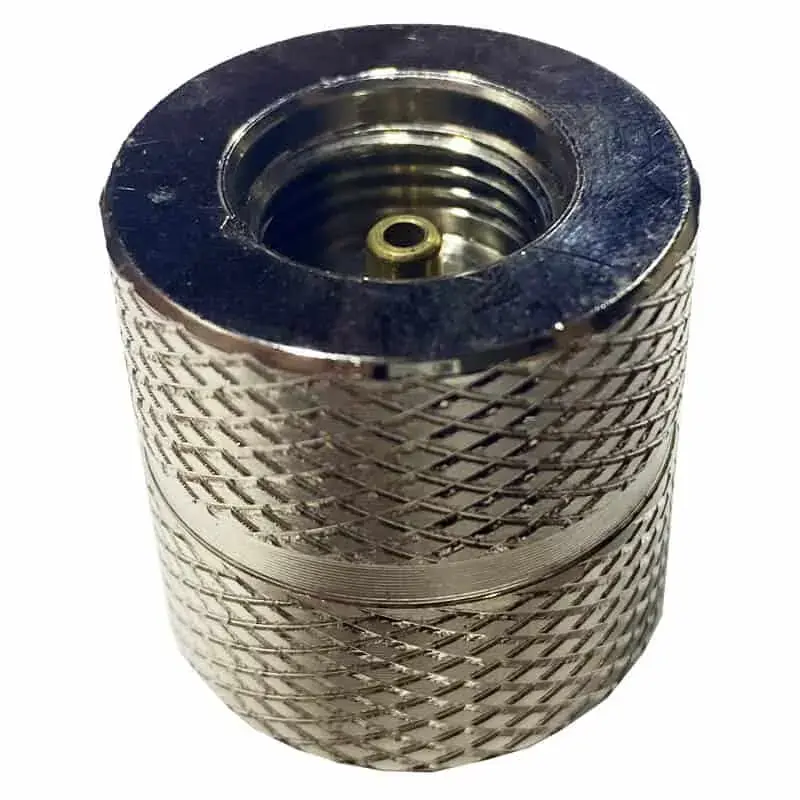

CGA 600 Male x C10 Female Adapter
Brass CGA 600 Male x C10 Female Adapter for connection between CGA 600 male and C10 female interfaces.
Technical Details
Maximum Inlet Pressure: 40 bar / 600 psi
Inlet Connection: C10 — 5/8″ x 18 UNF Female
Outlet Connection: CGA 600 Male
Cylinder & Regulator Connectors
Connectors for International Cylinder and Regulator Standards
Oxford Valves supplies selected gas connectors for cylinder, regulator and gas control equipment applications. Connector selection depends on the gas, country or regional standard, cylinder valve outlet, regulator inlet and application requirement.
NEN Standard Connectors
Oxford Valves supplies NEN standard cylinder valve connectors for selected cylinder, regulator and gas control connection requirements.
NEN connectors are selected according to the cylinder valve outlet and gas type. Common examples include Li2 for acetylene and Ri2 for oxygen. Final connector selection should be confirmed against the cylinder valve outlet, gas type and operating conditions.
Selection Note: Confirm the correct NEN connector before ordering.
DIN Standard Connectors
Oxford Valves supplies CGA standard cylinder valve connectors for selected U.S. cylinder, regulator and gas control connection requirements.
CGA connectors are selected according to the cylinder valve outlet and gas type. Common CGA examples include CGA 240 for anhydrous ammonia, dimethylamine, monoethylamine, monomethylamine and trimethylamine; CGA 320 for carbon dioxide; CGA 326 for nitrous oxide; CGA 330 for carbonyl sulfide, hydrogen bromide, hydrogen chloride, hydrogen sulfide, methyl mercaptan and silicon tetrafluoride; CGA 350 for arsine, carbon monoxide, deuterium, ethane, ethylene, hydrogen, methane, natural gas, phosphine and silane; CGA 510 for acetylene, allene, 1,3-butadiene, butane, butenes, dimethyl ether, ethyl acetylene, ethyl chloride, ethylene oxide, iso-butane, iso-butylene, propane, propylene and vinyl chloride; CGA 540 for oxygen; CGA 580 for argon, halocarbon-14, helium, krypton, neon, nitrogen and xenon; CGA 590 for air and sulfur hexafluoride; and CGA 660 for anhydrous ammonia, carbonyl fluoride, chlorine, cyanogen, halocarbon-22, methyl chloride, nitric oxide, nitrogen dioxide, phosgene and sulfur dioxide.
Selection Note: Confirm the correct CGA connector based on the cylinder valve outlet, gas type and operating conditions before ordering.

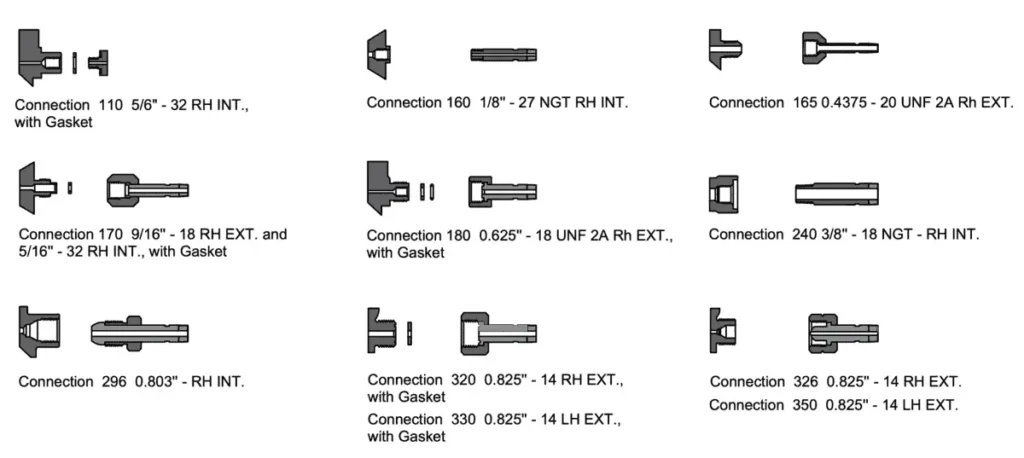

CGA U.S. Standard Connectors
Oxford Valves supplies CGA standard cylinder valve connectors for selected U.S. cylinder, regulator and gas control connection requirements.
CGA connectors are selected according to the cylinder valve outlet and gas type. Common CGA examples include CGA 240 for anhydrous ammonia, dimethylamine, monoethylamine, monomethylamine and trimethylamine; CGA 320 for carbon dioxide; CGA 326 for nitrous oxide; CGA 330 for carbonyl sulfide, hydrogen bromide, hydrogen chloride, hydrogen sulfide, methyl mercaptan and silicon tetrafluoride; CGA 350 for arsine, carbon monoxide, deuterium, ethane, ethylene, hydrogen, methane, natural gas, phosphine and silane; CGA 510 for acetylene, allene, 1,3-butadiene, butane, butenes, dimethyl ether, ethyl acetylene, ethyl chloride, ethylene oxide, iso-butane, iso-butylene, propane, propylene and vinyl chloride; CGA 540 for oxygen; CGA 580 for argon, halocarbon-14, helium, krypton, neon, nitrogen and xenon; CGA 590 for air and sulfur hexafluoride; and CGA 660 for anhydrous ammonia, carbonyl fluoride, chlorine, cyanogen, halocarbon-22, methyl chloride, nitric oxide, nitrogen dioxide, phosgene and sulfur dioxide.
Selection Note: Confirm the correct CGA connector based on the cylinder valve outlet, gas type and operating conditions before ordering.

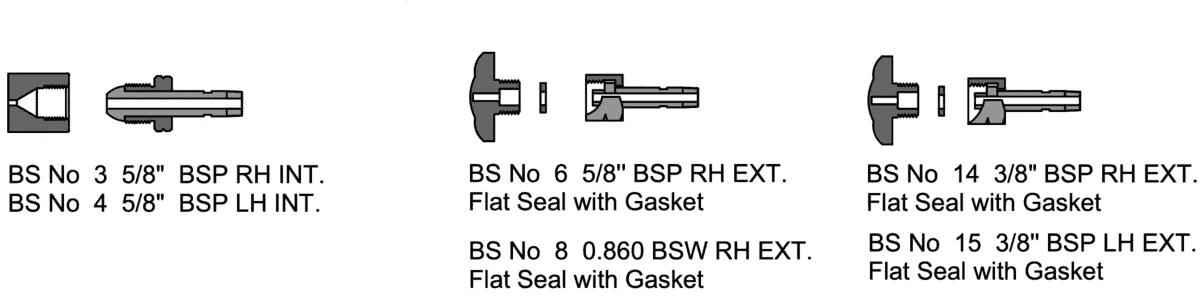

British Standard Connectors
Oxford Valves supplies British Standard cylinder valve connectors for selected cylinder, regulator and gas control connection requirements.
British Standard valve outlet connections are commonly selected according to the gas mixture classification. As a general guide, BS 15 connectors are used where the gas mixture contains both flammable and toxic components. BS 4 connectors are used where the mixture contains a flammable component but no toxic component. BS 14 connectors are used where the mixture contains a toxic component but no flammable component. BS 3 connectors are used where the mixture contains neither toxic nor flammable components.
Common BS examples include BS 3 for carbon dioxide, oxygen, nitrogen and zero air; BS 4 for carbon monoxide, methane, hydrocarbons and selected carbon monoxide / methane / oxygen gas mixtures; BS 14 for selected toxic, non-flammable gas mixtures; and BS 15 for hydrogen sulfide, chlorine, hydrogen chloride, hydrogen cyanide, ammonia, nitric oxide, nitrogen dioxide, sulfur dioxide and selected reactive calibration gas mixtures including H2S / CO / CH4 / O2 and H2S / CO / CO2 / CH4 / O2 mixtures.
Selection Note: Confirm the correct British Standard connector based on the cylinder valve outlet, gas type, gas mixture classification and operating conditions before ordering.
High Purity Flexible Hose
High purity flexible hose assemblies for selected calibration gas, specialty gas and technical gas applications.
Flexible hose assemblies support cylinder-to-regulator, regulator-to-instrument and equipment-to-equipment connections where safe, flexible gas transfer is required.
Suitable applications may include flammable gases, toxic gases, high-purity gases and small molecule gas applications, subject to gas compatibility, pressure rating, hose material, end fittings and operating conditions.
