Dial-a-Flow Regulators
The Oxford Valves OV-DAFR-600 Series is a range of Dial-a-Flow regulators designed for calibration gases, handheld gas detectors, bump testing, portable calibration gas cylinders, and gas delivery applications requiring selectable preset flow rates.
Dial-a-Flow regulators use a single-stage design and provide the user with a series of preset constant flow rates. The dial on the top of the regulator is used to manually change the selected flow rate.
The OV-DAFR-600 Series includes C10 and high pressure configurations, brass nickel plated and stainless steel options, selectable flow rate tables, 3/16″ barb outlet connections, and gauge options according to model.

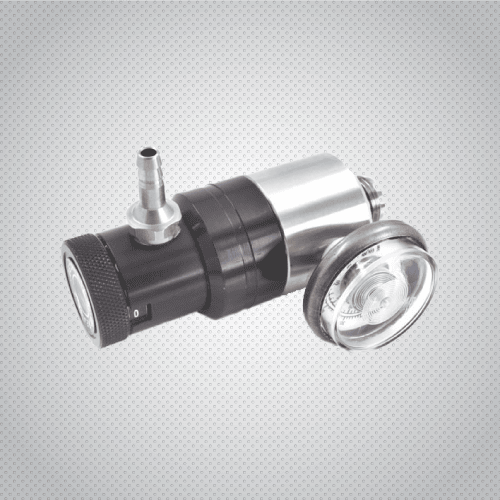

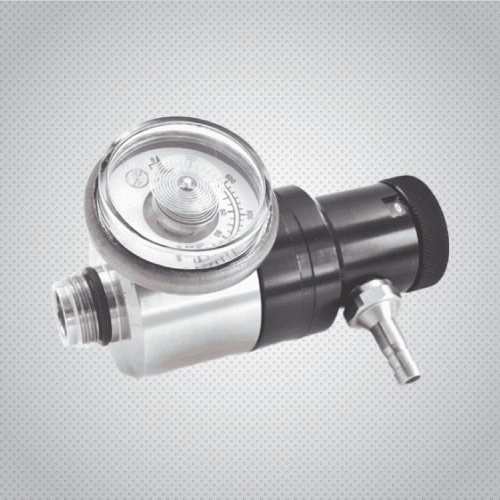

OV-DAFR-601 C10 Dial-a-Flow Regulator, Brass Nickel Plated Configuration
The OV-DAFR-601 is a C10 Dial-a-Flow regulator designed for calibration gases and handheld gas detectors. It uses a single-stage design and provides a series of preset constant flow rates selected manually using the top dial.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
CAP
|
ALUMINIUM
|
|
BONNET
|
ALUMINIUM
|
|
PISTON
|
BRASS
|
|
PISTON SEAL
|
VITON / NBR
|
|
BODY SEAL
|
NBR
|
|
VALVE SEAT
|
VITON / PTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|

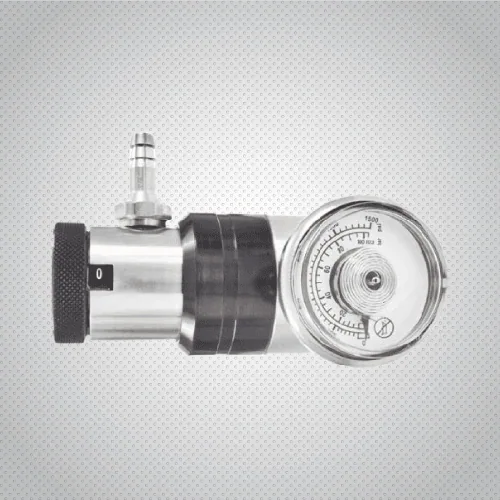

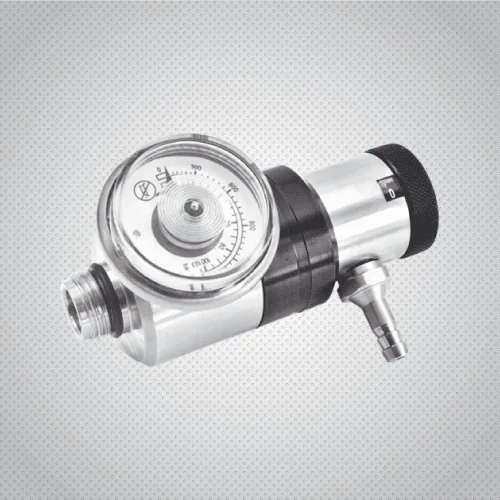

OV-DAFR-602 C10 Dial-a-Flow Regulator, Stainless Steel
The OV-DAFR-602 is a stainless steel C10 Dial-a-Flow regulator designed for calibration gases and handheld gas detectors. It provides multiple preset flow rates and is suitable for applications requiring stainless steel construction.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
CAP
|
STAINLESS STEEL
|
|
BONNET
|
ALUMINIUM
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEAL
|
VITON
|
|
BODY SEAL
|
VITON
|
|
VALVE SEAT
|
VITON / PTFE
|
|
GAUGE
|
0-1200 PSI
|
|
INLET
|
5/8-18 UNF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|

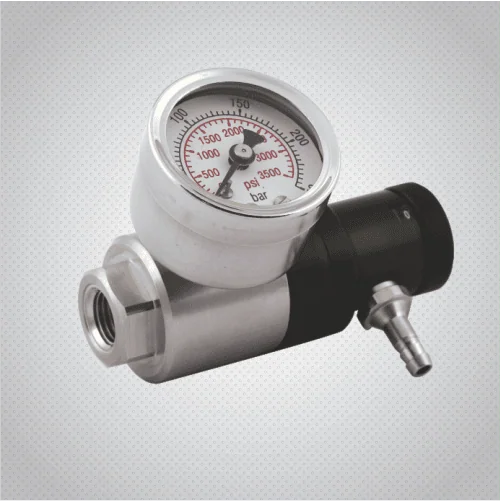

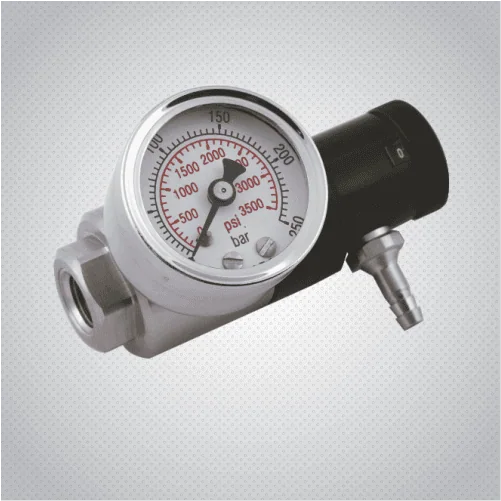

OV-DAFR-603 High Pressure Dial-a-Flow Regulator, Brass Nickel Plated Configuration
The OV-DAFR-603 is a high pressure Dial-a-Flow regulator designed for calibration gases and handheld gas detectors. It uses a single-stage design and provides selectable preset flow rates using the top dial.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
CAP
|
ALUMINIUM
|
|
BONNET
|
ALUMINIUM
|
|
PISTON
|
BRASS
|
|
PISTON SEAL
|
VITON / NBR
|
|
BODY SEAL
|
NBR
|
|
VALVE SEAT
|
VITON / PTFE
|
|
GAUGE
|
0-3000 PSI
|
|
INLET
|
1/4 NPTF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|

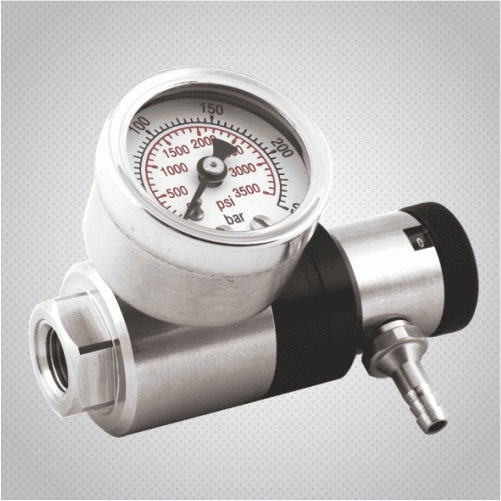

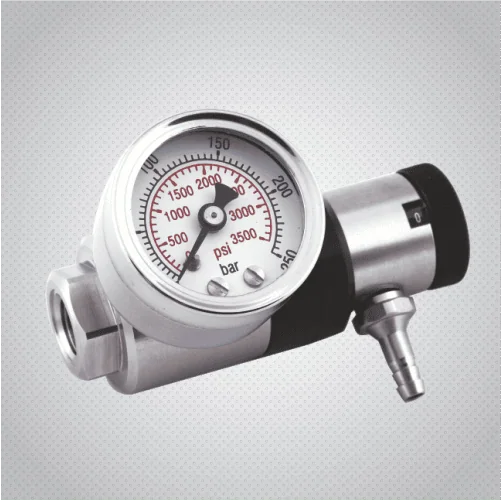

OV-DAFR-604 High Pressure Dial-a-Flow Regulator, Stainless Steel
The OV-DAFR-604 is a stainless steel high pressure Dial-a-Flow regulator designed for applications requiring stainless steel construction and higher inlet pressure capacity. It provides selectable preset flow rates using the top dial.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
CAP
|
STAINLESS STEEL
|
|
BONNET
|
ALUMINIUM
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEAL
|
VITON
|
|
BODY SEAL
|
VITON
|
|
VALVE SEAT
|
VITON / PTFE
|
|
GAUGE
|
0-3000 PSI
|
|
INLET
|
1/4 NPTF
|
|
OUTLET
|
3/16 BARB
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|
