Trigger Regulator
The Oxford Valves OV-TR-700 Series is a trigger-operated regulator designed for calibration gases and handheld gas detector applications.
The regulator dispenses gas when the trigger is pressed, allowing the user to control gas release during calibration, bump testing, or instrument checking. This makes it suitable for applications where gas should only be released manually and temporarily during use.
The OV-TR-700 Series is designed for C10 calibration gas cylinder connections and is supplied with a fixed flow rate according to customer requirement.

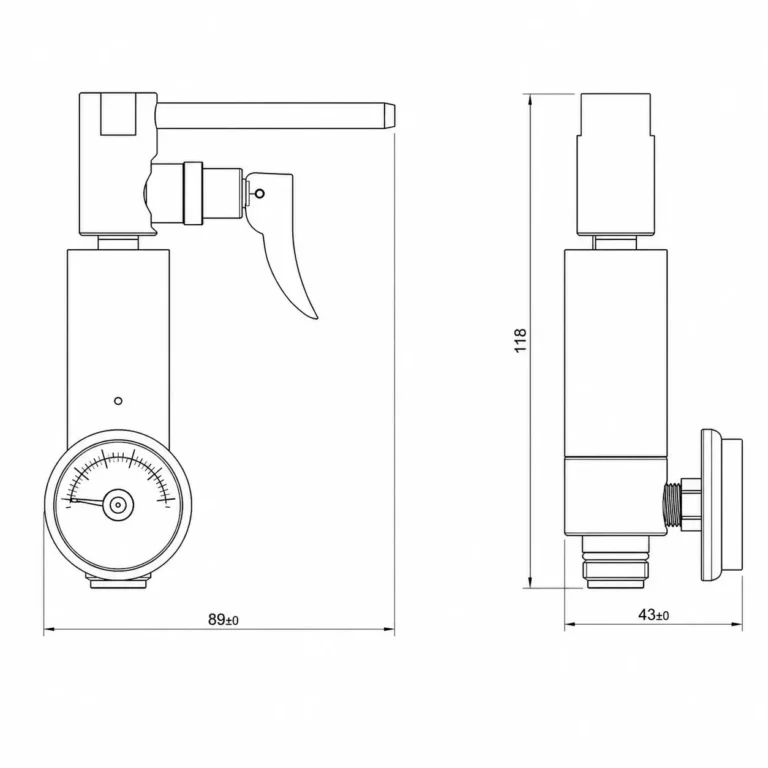

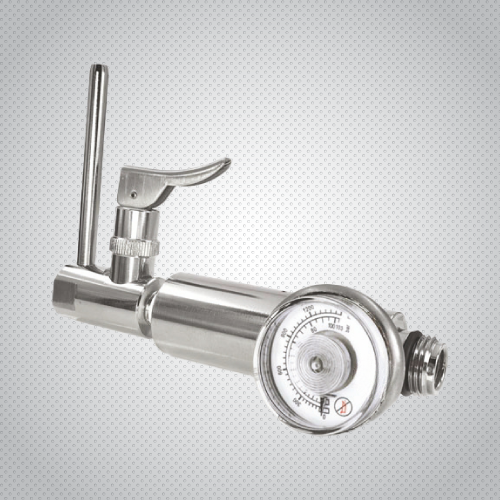

C10 Trigger Regulator, Brass Nickel Plated
The OV-TR-701 is a C10 trigger regulator designed for calibration gases and handheld gas detectors. The regulator dispenses gas when the trigger is pressed, allowing manual control of gas release during calibration, bump testing, and portable gas detector checks.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
Brass nickel plated
|
|
CAP
|
Brass nickel plated
|
|
Trigger
|
Stainless steel
|
|
PISTON
|
BRASS
|
|
PISTON SEAL
|
Buna-N and Teflon
|
|
BODY SEAL
|
Buna-N and Teflon
|
|
VALVE SEAT
|
VITON
|
|
GAUGE
|
Brass, 0 to 1500 psig / 103 bar
|
|
INLET
|
5/8" x 18UN C10
|
|
OUTLET
|
6 mm straight tube
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
