Fixed Flow Regulators
The Oxford Valves OV-FFR-300 Series is a range of fixed flow regulators designed to deliver a preset constant flow rate from calibration gas cylinders and portable gas packages.
Fixed flow regulators are commonly used with calibration gases, handheld gas detectors, bump testing equipment, gas analysis instruments, and portable test gas systems. They provide a controlled outlet flow without the need for continuous manual adjustment during use.
The OV-FFR-300 Series includes CGA600, C10, high pressure, mini, brass nickel plated, stainless steel, hose barb outlet, NPT outlet, and compression fitting outlet configurations.

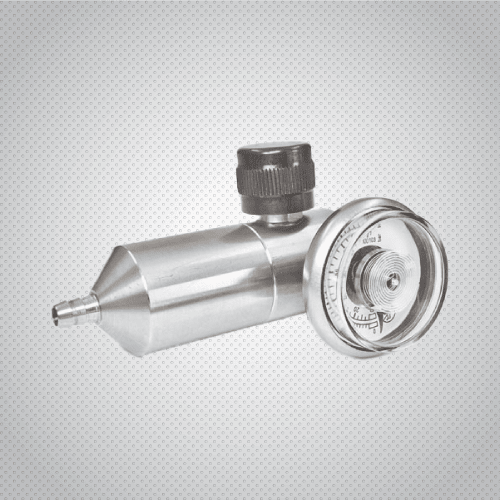

OV-FFR-301 CGA600 Fixed Flow Regulator, Brass Nickel Plated
The OV-FFR-301 is a CGA600 fixed flow regulator using a single-stage design to provide a preset constant flow rate. It is designed for use with compatible 17L and 34L calibration gas cylinders and is suitable for calibration gases and handheld gas detector applications.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
BRASS
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-1200 PSI
|
|
PISTON
|
BRASS
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
NBR
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
1"-20 UNF
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|

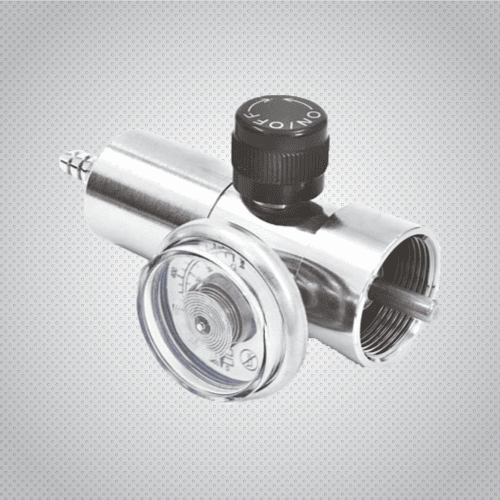

OV-FFR-302 C10 Fixed Flow Regulator, Brass Nickel Plated
The OV-FFR-302 is a C10 fixed flow regulator using a single-stage design to deliver a preset constant flow rate. It is designed for use with 17L and 34L cylinders and is suitable for calibration gases and handheld gas detectors.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-1200 PSI
|
|
PISTON
|
BRASS
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
NBR
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0 TO 8.0 LPM
|
|
NO. OF STAGES
|
2
|
OV-FFR-303 C10 Fixed Flow Regulator, Stainless Steel
The OV-FFR-303 is a stainless steel C10 fixed flow regulator designed to provide a preset constant flow rate from compatible calibration gas cylinders. It is suitable for applications where stainless steel construction is required.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-1200 PSI
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
VITON
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0-8.0 LPM
|
|
NO. OF STAGES
|
2
|

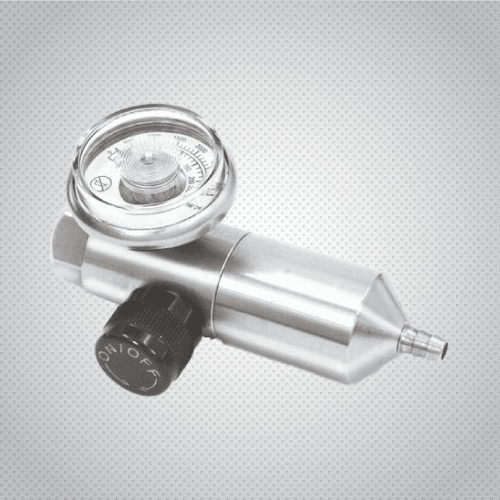

OV-FFR-304 High Pressure Fixed Flow Regulator, Brass Nickel Plated
The OV-FFR-304 is a high pressure fixed flow regulator using a single-stage design to deliver a preset constant flow rate. It can be connected with suitable CGA, DIN, or BS cylinder connections depending on configuration and is used for calibration gases and handheld gas applications.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-3000 PSI
|
|
PISTON
|
BRASS
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
NBR
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
1/4 NPTF
|
|
FLOW RATE
|
0-8.0 LPM
|
|
NO. OF STAGES
|
2
|

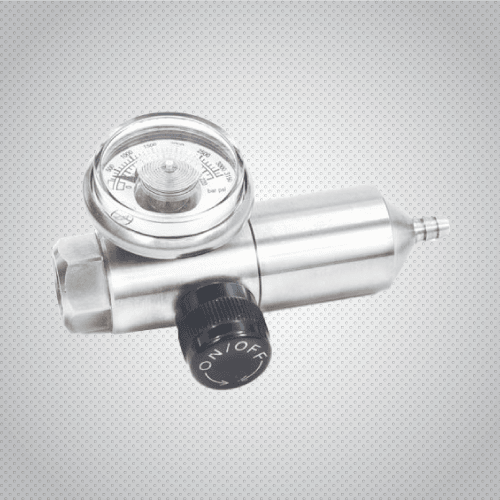

OV-FFR-305 High Pressure Fixed Flow Regulator, Stainless Steel
The OV-FFR-305 is a stainless steel high pressure fixed flow regulator for applications requiring stainless steel construction and a preset constant flow rate. It is suitable for compatible calibration gas and handheld gas applications.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-3000 PSI
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
VITON
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
1/4 NPTF
|
|
FLOW RATE
|
0-8.0 LPM
|
|
NO. OF STAGES
|
2
|
OV-FFR-306 C10 Fixed Flow Regulator, Brass Nickel Plated, 120 bar
The OV-FFR-306 is a C10 fixed flow regulator with a 120 bar maximum inlet pressure rating. It uses a single-stage design and is intended for calibration gases and handheld gas detector applications requiring a higher inlet pressure configuration.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-3000 PSI
|
|
PISTON
|
BRASS
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
NBR
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0 TO 8.0 LPM
|
|
NO. OF STAGES
|
2
|
OV-FFR-307 C10 Fixed Flow Regulator, Stainless Steel, 120 bar
The OV-FFR-307 is a stainless steel C10 fixed flow regulator with a 120 bar maximum inlet pressure rating. It is designed for applications requiring stainless steel construction and a preset constant flow rate.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-3000 PSI
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
VITON
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0-8.0 LPM
|
|
NO. OF STAGES
|
2
|

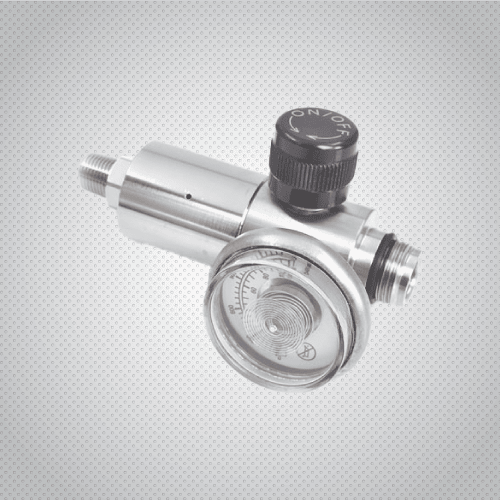

OV-FFR-308 C10 Fixed Flow Regulator with 1/8" NPT Male Outlet, Brass Nickel Plated
The OV-FFR-308 is a C10 fixed flow regulator with a 1/8″ NPT male outlet. It is designed to deliver a preset constant flow rate for calibration gas and handheld gas detector applications where an NPT outlet connection is required.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-1200 PSI
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
NBR
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
1/8 NPTM
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0 TO 8.0 LPM
|
|
NO. OF STAGES
|
2
|

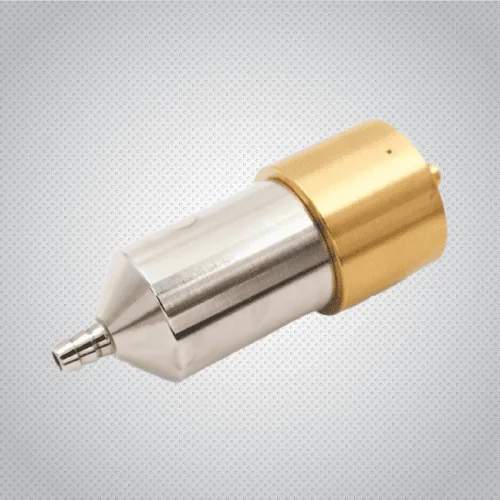

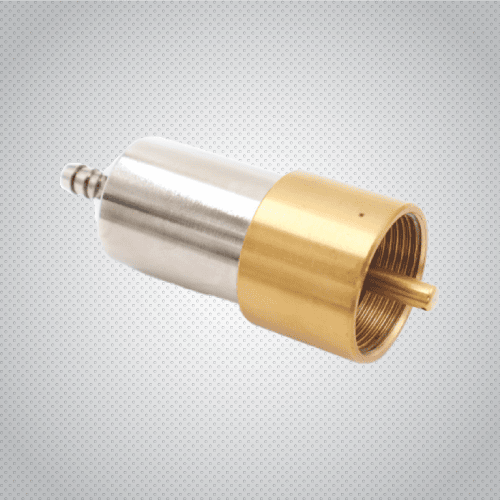

OV-FFR-309 Mini CGA600 Fixed Flow Regulator, Brass Nickel Plated
The OV-FFR-309 is a mini CGA600 fixed flow regulator designed as a compact and economical option for calibration gas and handheld gas detector applications. This design does not include a pressure gauge or on/off knob.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
BRASS
|
|
PISTON
|
BRASS
|
|
PISTON SEALS
|
VITON
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
3/16 BARB
|
|
INLET
|
1"-20 UNF
|
|
FLOW RATE
|
0 TO 8.0 L/M
|
|
NO. OF STAGES
|
2
|

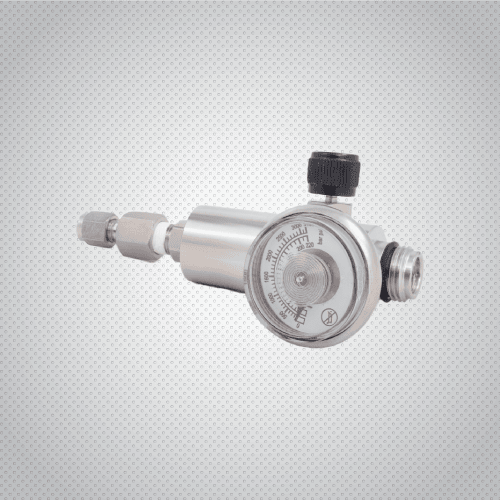

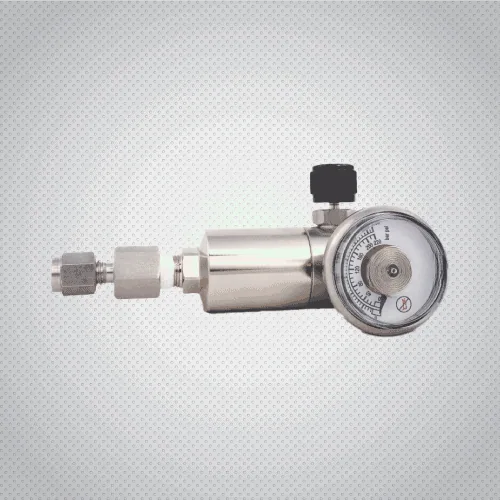

OV-FFR-310 C10 Fixed Flow Regulator with 1/8" Compression Fitting Outlet, Brass Nickel Plated
The OV-FFR-310 is a C10 fixed flow regulator with a 1/8″ compression fitting outlet. It is designed for calibration gases and handheld gas detectors where a compression fitting outlet is required instead of a hose barb
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL / BRASS
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-1200 PSI
|
|
PISTON
|
BRASS
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
NBR
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
1/8" ODT
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0-8.0 LPM
|
|
NO. OF STAGES
|
2
|

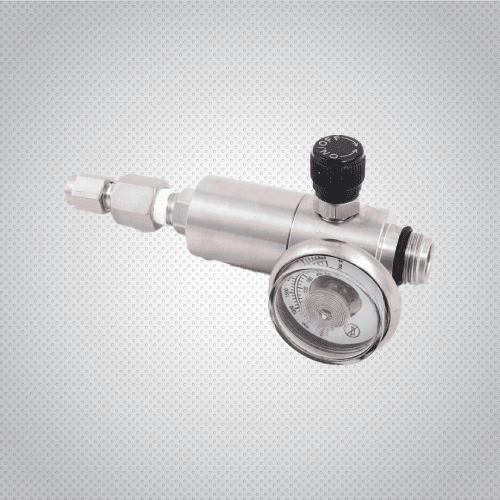

OV-FFR-311 C10 Fixed Flow Regulator with 1/8" Compression Fitting Outlet, Stainless Steel
The OV-FFR-311 is a stainless steel C10 fixed flow regulator with a 1/8″ compression fitting outlet. It is designed for applications requiring stainless steel construction and a compression fitting outlet connection.
|
MATERIAL OF CONSTRUCTION
|
|
|---|---|
|
BODY
|
STAINLESS STEEL
|
|
BONNET
|
STAINLESS STEEL
|
|
GAUGE
|
0-1200 PSI
|
|
PISTON
|
STAINLESS STEEL
|
|
PISTON SEALS
|
VITON
|
|
BODY SEALS
|
VITON
|
|
MAIN VALVE SEAT
|
VITON
|
|
OUTLET
|
1/8" ODT
|
|
INLET
|
5/8-18UNF
|
|
FLOW RATE
|
0-8.0 LPM
|
|
NO. OF STAGES
|
2
|
